Usages	Soft and hard wood
Type	Type A, Type B
Application	Essential for ensuring correct distribution of lateral forces created by crooked plank in heavy duty use
Nick	Use as a shoulder sawblade on multirip machines
Machines	Multi blade table saws
Surface	Chrome

Quick Details:

1. soft and hard wood dried at max 15% humidity rate

2. welcome customize design requirements

3. on multiripping machines, multi blade table saws

4. industrial grade

5. separate packages with plastics cover edge

Advantages:

1. prevent from rosin sticking on the body

2. Reduce material waste

3. better chips releasing

4. heat radiating

5. durable and sharp

Specifications:

D (mm)	B (mm)	b (mm)	d (mm)	Z	α	T-type	(CH-KN)
160	2.1	1.7	40	20+2	20	ZY	8*4
160	2.1	1.7	40	24+2	20	ZY	10*5
160	2.2	1.7	40	20+2	20	ZY	8*4
160	2.5	2.1	40	20+2	20	ZY	8*4
160	2.5	2.1	40	24+2	20	ZY	8*4
160	2.5	2.1	40	24+2	20	ZY	10*5
180	2.1	1.7	40	20+2	20	ZY	8*4
180	2.2	1.7	40	20+2	20	ZY	8*4
180	2.3	1.9	40	20+2	20	ZY	8*4
180	2.7	2.2	40	24+2	20	ZY	8*4
180	2.7	2.2	50	24+2	20	ZY	10*5
205	2.0	1.5	40	24+3	20	ZY	8*4
212	2.2	1.6	40	24+3	20	ZY	8*4
230	2.2	1.7	40	24+2	20	ZY	8*4
230	2.2	1.7	50	24+2	20	ZY	10*5
230	2.4	1.9	40	24+2	20	ZY	8*4
230	2.6	2.1	40	28+2	20	ZY	8*4
230	2.6	2.1	40	30+2	20	ZY	8*4
230	2.8	2.2	40	24+2	20	ZY	8*4
230	2.8	2.2	50	24+2	20	ZY	10*5
230	3.0	2.2	40	24+2	20	ZY	8*4
255	2.2	1.7	50	24+2+2	20	ZY	10*5
255	2.4	1.9	50	24+2+2	20	ZY	10*5
255	2.6	2.1	50	24+2+2	20	ZY	10*5
255	2.6	2.1	50	28+2+2	20	ZY	10*5
280	2.8	2.2	50	24+2+2	20	ZY	10*5
280	2.1	1.6	50	28+2+2	20	ZY	10*5
280	2.2	1.7	50	28+2+2	20	ZY	10*5
280	2.4	1.9	50	28+2+2	20	ZY	10*5
280	2.8	2.0	50	28+2+2	20	ZY	10*5
280	2.8	2.2	55	32+2+2	20	ZY	12*5
280	2.8	2.2	55	36+2+2	20	ZY	12*5
305	3.0	2.2	40	28+2+2	20	ZY	8*4
305	2.4	1.9	50	28+2+2	20	ZY	10*5
305	2.6	2.0	50	24+2+2	20	ZY	10*5
305	2.6	2.1	50	28+2+2	20	ZY	10*5
305	2.6	2.1	50	32+2+2	20	ZY	10*5
305	2.8	2.2	50	28+2+2	20	ZY	2CH 12*5.2
305	3.0	2.4	50	28+2+2	20	ZY	10*5
320	3.0	2.4	50	32+2+2	20	ZY	10*5
320	2.7	2.1	50	32+2+2	20	ZY	10*5
320	2.8	2.2	50	32+2+2	20	ZY	10*5
320	3.0	2.4	50	32+2+2	20	ZY	10*5
330	3.2	2.5	50	32+2+2	20	ZY	10*5
330	2.8	2.1	50	32+2+2	20	ZY	10*5
355	2.8	2.1	50	32+2+2	20	ZY	10*5
355	3.2	2.5	60	32+2+2	20	ZY	14*7
355	3.4	2.7	60	36+2+2	20	ZY	2CH 14*6
380	3.6	2.8	60	40+2+2	20	ZY	14*7
380	3.2	2.5	60	32+2+4	20	ZY	14*7
380	3.4	2.7	60	32+2+4	20	ZY	14*7
380	3.6	2.8	60	32+2+4	20	ZY	14*7
405	3.8	3.0	60	36+2+4	20	ZY	14*7
405	3.2	2.5	60	36+2+4	20	ZY	14*7
405	3.4	2.5	60	32+2+4	20	ZY	14*7
405	3.4	2.7	60	36+2+4	20	ZY	14*7
405	3.6	2.8	60	36+2+4	20	ZY	14*7
405	3.8	2.8	60	32+2+4	20	ZY	14*7
455	3.8	3.0	60	36+2+4	20	ZY	14*7
455	3.8	3.0	70	36+2+4	20	ZY	14*7
455	3.8	3.0	70	40+2+4	20	ZY	14*7
455	4.0	3.2	70	36+2+4	20	ZY	14*7
455	4.0	3.2	70	40+2+4	20	ZY	14*7
455	4.2	3.4	70	40+2+4	20	ZY	14*7

Tags:

Portable Wood Carving Bits For Router

Stable Circular Saw Blade For Metal

Durable Steel Cutting Blade For Circular Saw

Products Details

Home > Products >

TCT Circular Saw Blades

LAMBOSS Industrial Grade TCT Circular Ripping Saw Blades With Rakers

All Category

TCT Circular Saw Blades

Diamond Circular Saw Blades

Industrial Circular Saw Blades

TCT Straight Bit

Straight Router Bits

Bearing Router Bits

Moulding Router Bits

PCD Circular Saw Blades

Metal Circular Saw Blades

Acrylic Saw Blades

PCD Router Bits

PCD Milling Cutter

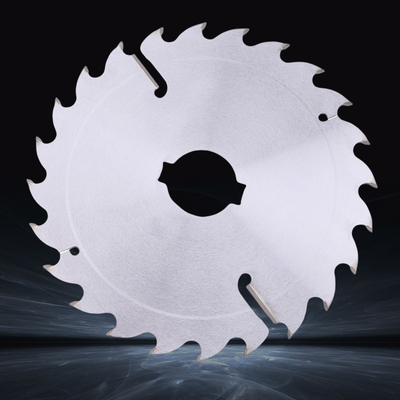

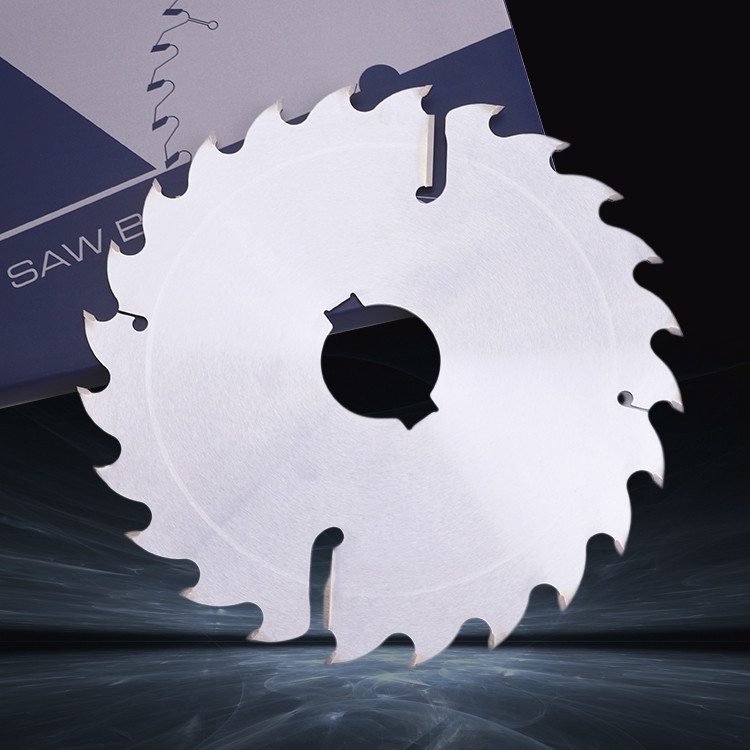

LAMBOSS Industrial Grade TCT Circular Ripping Saw Blades With Rakers

Brand Name:	LAMBOSS
Model Number:	1
MOQ:	10 pcs
Packaging Details:	separate paper box
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

LAMBOSS

Certification:

ISO9001

Model Number:

Features:

ATB

Machines:

Multirippin Machines

Material:

Imported Or Domestic

Application:

For Ripping

Teeth:

24+2

Surface:

Various Coating

Brand:

Lamboss And Yoetc

Advantages:

Reduce Material Waste

Minimum Order Quantity:

10 pcs

Packaging Details:

separate paper box

Delivery Time:

7 working days

Payment Terms:

T/T, Western Union, MoneyGram

Supply Ability:

5000 pcs per month

Highlight:

Ripping Saw Blades With Rakers
