Brand Name: | LAMBOSS |
Model Number: | 3 |
MOQ: | 10 pieces |

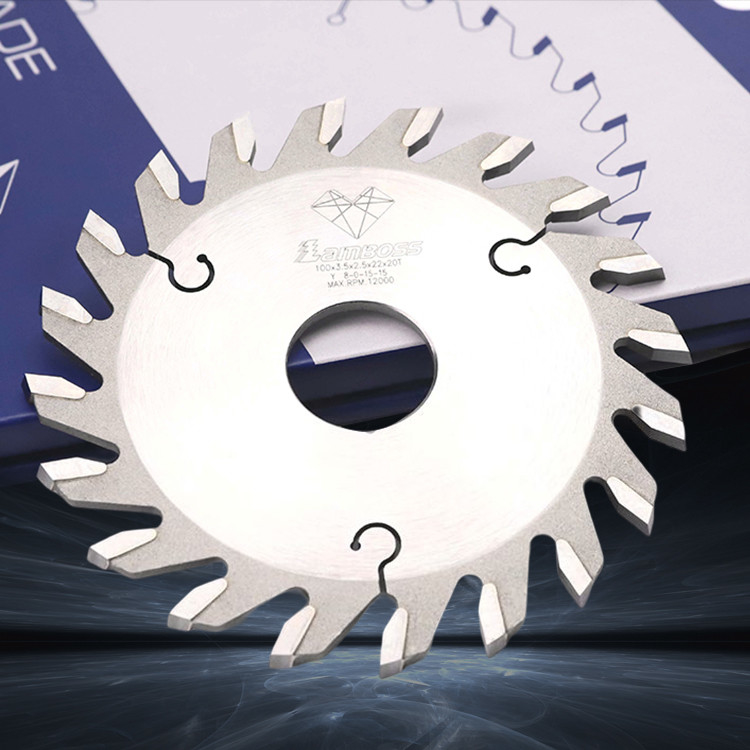

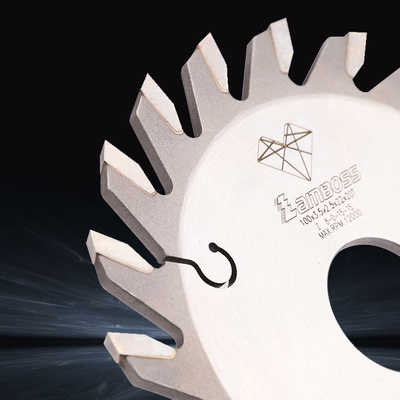

Lamboss Industrial Grade TCT Circular Saw Blade End Trim Unit For Boarded Panels
Product Descriptions:
Usage | Chip Board, MDF, Composite Material |
Body Steel | Germany or Japan Imported |
Carbide | Luxemburg |
Certificates | ISO9001 |
Machines | Vollmer, Gerling |
Features | Smooth and Flat surface |
Quick Details:
1. for wood
2. we have regular stock of 100mm*Z20
3. on edge banding machines
4. Flat-triple chip tooth with negative cutting angle
5. separate packages with plastics cover edge
Advantages:
1. for longer cutting life
2. design for low noise saw blades
3. super hard carbide tips for longer cutting life
4. durable and stable
5. effective and sharp
Specifications:
D (mm) | B (mm) | b (mm) | d (mm) | Z | α | T-type | Positioning hole |
100 | 3.2 | 2.5 | 22 | 20 | 12 | Z | |
100 | 3.2 | 2.5 | 22 | 20 | 12 | Y | |
100 | 3.5 | 2.5 | 22 | 20 | 12 | Z | |
100 | 3.5 | 2.5 | 22 | 20 | 12 | Y | |
100 | 2.6 | 2.0 | 32 | 30 | 12 | Z | |
100 | 2.6 | 2.0 | 32 | 30 | 12 | Y | |
100 | 3.0 | 2.2 | 32 | 30 | 12 | Z | |
100 | 3.0 | 2.2 | 32 | 30 | 12 | Y | |
110 | 2.6 | 2.0 | 22 | 20 | 10 | Z | |
110 | 2.6 | 2.0 | 22 | 20 | 10 | Y | |
110 | 3.0 | 2.2 | 22 | 20 | 10 | Z | |
110 | 3.0 | 2.2 | 22 | 20 | 10 | Y | |
125 | 2.6 | 2.0 | 22 | 30 | 15 | Z | |
125 | 2.6 | 2.0 | 22 | 30 | 15 | Y | |
150 | 3.2 | 2.2 | 30 | 48 | 10 | Z | |
150 | 3.2 | 2.2 | 30 | 48 | 10 | Y | |
100 | 3.2 | 2.5 | 22 | 20 | 12 | ZY | |
100 | 3.5 | 2.5 | 22 | 20 | 12 | ZY | |
100 | 2.6 | 2.0 | 32 | 30 | 12 | ZY | |
100 | 3.0 | 2.2 | 32 | 30 | 12 | ZY | |
110 | 2.6 | 2.0 | 22 | 20 | 10 | ZY | |
104 | 3.0 | 2.0 | 22 | 30 | 12 | ZY | TYPE |
110 | 3.0 | 2.2 | 22 | 20 | 10 | ZY | |
125 | 3.5 | 2.5 | 30 | 36 | 12 | ZY | 4 positive 4 negative |
