TCT Straight Bit
>
Sharp Carbide Engrooving Carving CNC Compression Bit Three Edges

Sharp Carbide Engrooving Carving CNC Compression Bit Three Edges

Brand Name: LAMBOSS
Model Number: TF405
MOQ: 50 pieces
Packaging Details: separate plastic box
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001
Product Name:
Three Edges Compression Bit
Product Material:
Carbide
Shank Diameter:
1/2''
Blade Diameter:
6mm
Blade Length:
20mm
Usage:
Ripping, Engrooving, Drilling, Trimming, Cleaning Bottom, Carving
Advantage:
High Life Span, Sharp, Effective
Suitable Materials:
Multilayer Board+MDF+solid Wood Board+particle Board
Applicable Equipment:
Engrving Machines, CNC Milling, CNC Drilling
Customized Support:
OEM
Highlight:

Three Edges CNC Compression Bit

,

Engrooving Carving CNC Compression Bit

,

Sharp Carbide CNC Compression Bit

Product Description

Sharp Carbide Engrooving Carving CNC Compression Bit Three Edges



Description of CNC Compression Bit

A CNC compression bit, also known as a spiral compression bit, is a specialized cutting tool used in CNC (Computer Numerical Control) machining. It is designed to cut materials in a compression pattern, which means the bit spirals in a clockwise direction as it enters the material, and then spirals in a counterclockwise direction as it exits the material. This creates a "compression" effect, where the material is compressed inward toward the center of the cut, resulting in a cleaner cut with less tear-out and chip-out.



Compression bits are commonly used in cutting laminates, plywood, MDF, and other materials that tend to chip or splinter easily. They are also used for cutting slots and grooves, and for routing channels in materials where a clean edge is important.



CNC compression bits come in various sizes and shapes, including straight and tapered, and with different cutting edge configurations, such as two-flute and three-flute. The choice of bit depends on the specific application and the material being cut.



Specification of CNC Compression Bit
Model number
TF405
Product Name
CNC Compression Bit
Size 1/2×6mm×20mm
Advantage
High life span
Sample
Samples available
Material
Carbide
MOQ
1 box(50 pieces/box)
Applicable equipment
Cutting machine, engraving machine, machining center and other high-speed equipment



Advantages of CNC Compression Bit

1. Clean, chip-free cuts: The compression design of the bit helps to compress the material as it cuts, resulting in less chip-out and tear-out, and a cleaner, smoother edge.

2. Increased tool life: The compression design also helps to reduce the amount of heat generated during cutting, which can lead to longer tool life and less wear and tear on the bit.

3. Versatility: Compression bits can be used to cut a wide range of materials, including wood, plastics, and composites, making them a versatile tool in a CNC machine.

4. Improved accuracy: The precision cutting of a compression bit can help to improve the overall accuracy of CNC machining, resulting in higher-quality parts and products.

5. Reduced machine downtime: Because compression bits are designed to cut cleanly and efficiently, they can help to reduce machine downtime caused by tool changes or maintenance issues.



Related Product

Code No Size D(mm) H(mm)
TF402406020 1/2×6mm×20mm 6.00 20.00
TF402406022 1/2×6mm×22mm 6.00 22.00
TF402406026 1/2×6mm×26mm 6.00 26.00
TF402408020 1/2×8mm×20mm 8.00 20.00
TF402408022 1/2×8mm×22mm 8.00 22.00
TF402408026 12×8mm×26mm 8.00 26.00
TF402408028 1/2×8mm×28mm 8.00 28.00
TF402408032 1/2×8mm×32mm 8.00 32.00
TF402410022 1/2×10mm×22mm 10.00 22.00
TF402410028 1/2×10mm×28mm 10.00 28.00
TF402410032 1/2×10mm×32mm 10.00 32.00
TF402410035 1/2×10mm×35mm 10.00 35.00

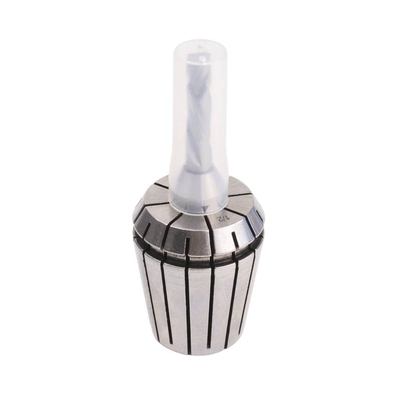

Sharp Carbide Engrooving Carving CNC Compression Bit Three Edges 0

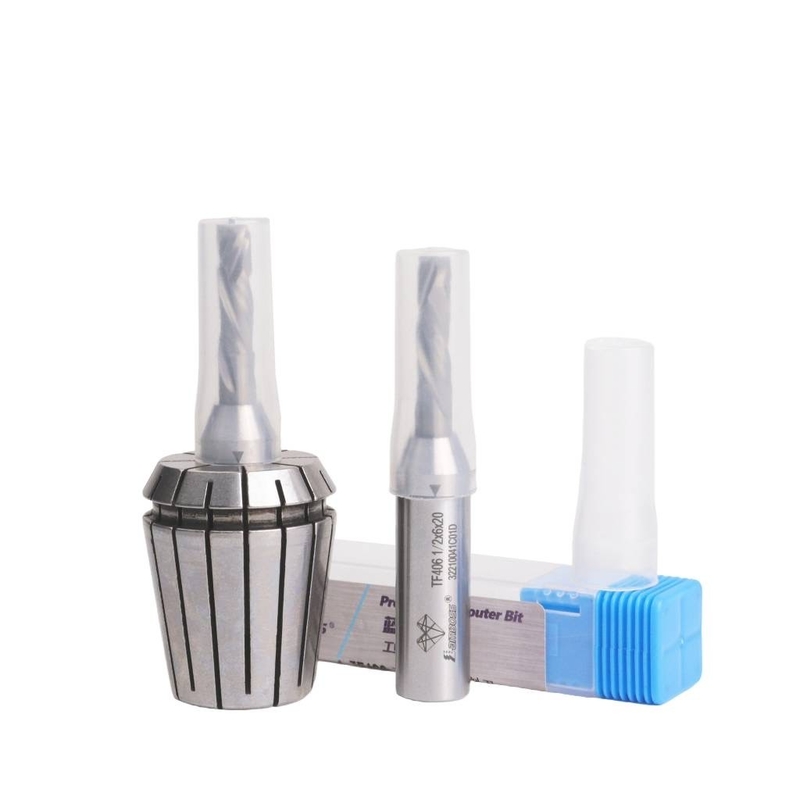

Sharp Carbide Engrooving Carving CNC Compression Bit Three Edges 1
Our Advantages
Sharp Carbide Engrooving Carving CNC Compression Bit Three Edges 2
Sharp Carbide Engrooving Carving CNC Compression Bit Three Edges 3
Sharp Carbide Engrooving Carving CNC Compression Bit Three Edges 4


FAQ

1) Is Foshan Yongtai Saw Co., Ltd a factory or trading company?

A: Foshan Yongtai Saw Co., Ltd is an experienced factory, established in 1994, specilizing in circular TCT&PCD sawblades, miling cutters. We have begun to own distributors world-wide since 2011.


2) What is the MOQ?
A: It depends on the products size. Small size requires for big quanity while big size for small. You are always welcome to contact us for more details.

3) Are samples available? Are they free or extra?
A: Yes, and you shall pay for them. Sample cost can be returned in mass order. Do not hesitate to contact us for the price.

4) What is your payment terms?
A: T/T always, Western Union. Payment<=1500USD, 100% in advance. Payment>=1500USD, 30%-50%T/T in advance, balance before shipment.

5) How long is the delivery time?
A: Generally it takes 8 to 10 working days for trial order, 15 to 20 working days for mass order and customized order. The specific time depends on the quantity. Please feel free to contact us if you have any question.

6) What is your delivery way?
A: Express delivery, air transport, sea shipping are available for your request.

7) Can you sum up your outstanding advantages of your company?

A: Competitive price, reliable quality, experienced yet creative, excellent equipment.
